FORMODAL® BM-6082
Precision milled rolled plates
rolled • precision milled on both sides
PVC coated
Specially for:
– shipbuilding
– railed vehicles
– boiler and container construction
– aerospace
– military technology
Available forms:
– plates
– cuttings in nearly all requested lengths, widths and thicknesses
– circular blanks
– rings
– shaped blanks as per drawing
– parts as per drawing
Special features of this material:
– Precision milled plates
– Good corrosion resistance
– Good welding properties
– Curable alloy
– Good machinability
Applications:
– Shipbuilding
– Railed vehicles
– Boiler and container construction
– Aerospace
– Military technology

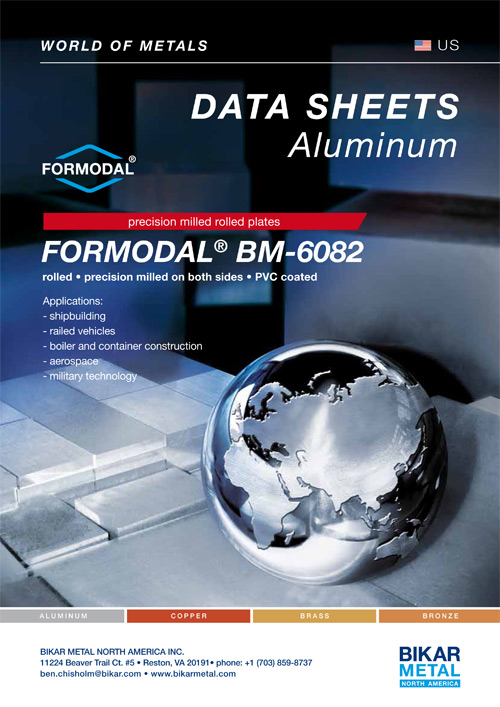

FORMODAL® BM-6082 precision milled rolled plates (aluminum data sheet)
Standard dimensions:
118.90 x 59.84 in.
Tolerances:
| Thickness tolerance inches | Flatness tolerance inches1 | |
|---|---|---|
| 0.315″ − 0.591″ | ± 0.004″ | max. 0.02″ |
| 0.591″ − 5.51″ | ± 0.004″ | max. 0.014″ |
Other dimensions on request.
1 This specification refers to the total area; not only to sections of a plate or a pre-cut part.
By dividing the surface, the flatness is not reduced proportionately.
Surface roughness:
Ra 15.75 μin
DOWNLOAD
FORMODAL® BM-6082 precision milled rolled plates
Data Sheets Aluminum US (PDF: 267 kB)
